Pool Renovation in Marbella with Polyurea Rayston, 120 square metres in 2019. España – Andalucia. The products on the job are Polyurea Rayston, Kryptanate 100 Flex.
01 · Project overview
What is this project?
Pool Renovation in Marbella with Polyurea Rayston, 120 square metres in 2019. España – Andalucia. The products on the job are Polyurea Rayston, Kryptanate 100 Flex. Andalusia’s sun is long and direct. A film left bare will show it, even when the waterproofing underneath is still sound.
Seloal Rehabilitaciones built the system in three layers.
First came a polyurea primer, then Polyurea Rayston, and finally a top coat from the Kryptanate range.

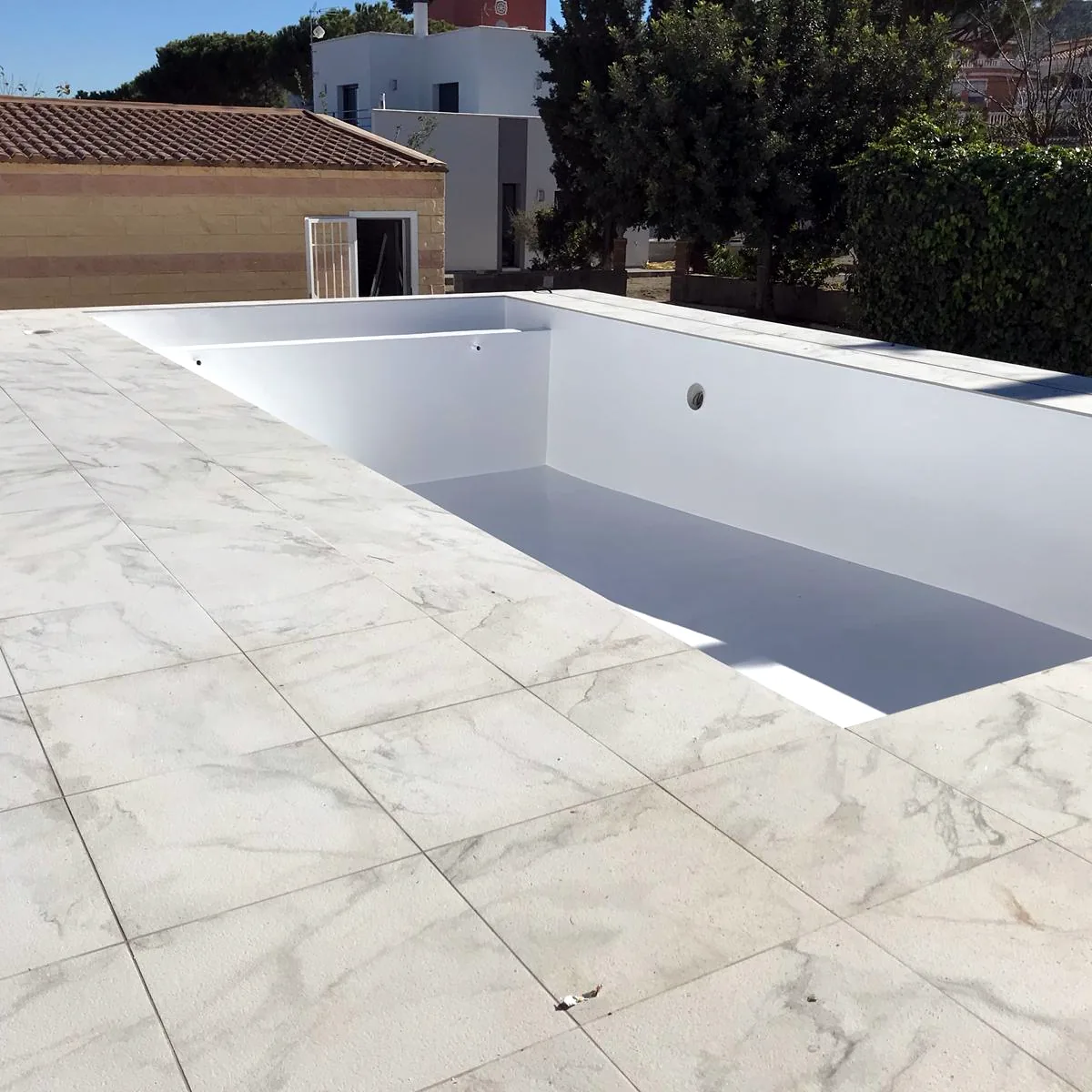

Also, hedges, trees and a small shed stand around it.
Krypton Chemical supplies the resin system. The duty is ordinary and strict: keep water, wear and weather on the right side of the structure, and do it in the details as well as in the open field.
| Project | Pool Renovation in Marbella with Polyurea Rayston |
|---|---|
| Place | España – Andalucia |
| Area | 120 m² |
| Year | 2019 |
| Line | Waterproofing |
| Products | Polyurea Rayston, Kryptanate 100 Flex |
02 · The challenge
What did this structure ask of the system?
A pool stays full. Chlorine, warm water and the steps where people stand all sit on one lining. The failure is almost never in the middle of the floor. It is at an outlet, a corner, or a joint someone left for later.
Pool Renovation in Marbella with Polyurea Rayston has to be one film, taken around those details while the material can still do it. Across 120 square metres, a thin spot is not a small repair.
03 · The solution
Which system was trusted here?
The system trusted here is the one named for the job: Polyurea Rayston, Kryptanate 100 Flex. It is chosen because it matches the substrate and the exposure, not because every building wants the same can.
The build-up is there to survive the exposure this structure actually has, including the lines where workmanship usually goes thin.
04 · Application
How is the system built?
Where the system is Polyurea Rayston, the concrete or the prepared deck is not sprayed over dirt. Pull-off should be at least 1.4 N/mm2. Cracks are cut out and filled. Moisture in the concrete stays under 4 percent, with the concrete between 10 and 40 degrees C. If the slab is damp behind, two coats of epoxy primer go on, the second blinded with quartz. That bond is what stops a blister when the deck heats up.
The spray is hot. Resin about 65 degrees C, isocyanate about 75 degrees C, hose about 65 degrees C, and at least 140 bar at the gun. The usual build is 1.5 to 2.0 kg per square metre, about 1.5 to 2 mm. Gel time is about 4 seconds at 25 degrees C. Typical elongation is 324 percent and tensile strength is 16.2 MPa. Those are the product’s figures, not a thickness measured on Pool Renovation in Marbella with Polyurea Rayston. An aromatic film shifts colour in the sun, so an exposed face takes an aliphatic topcoat. A buried lining does not need that coat to keep its strength.
On Pool Renovation in Marbella with Polyurea Rayston the lining is under water for months at a time. Steps, skimmers and the floor-to-wall corner take the movement and the chlorine together. A joint left in one of those lines will open. The film has to turn the corner at the same build as the floor.
Old tile, where that is the substrate, is a special case. The glaze is a closed face. It is prepared until the resin has something to hold, and every loose tile is out before the primer. Encapsulating a drummy tile is how the lining comes back up in the first season.
Filling waits until the cure the product asks for, not until the pool looks finished. Early water is a soft film and a blister. The outlets are sprayed or rolled into the same film, not collared afterwards.
05 · Results
What does a job like this stand behind?
Pool Renovation in Marbella with Polyurea Rayston has one standard. The coating is still doing its job after the building is back in use, at the details as well as in the middle. The area on this job is 120 square metres.
Figures for cure, thickness and strength, where they are given, come from the product data sheets. They are not a test cut out of this building.
What this asks of Pool Renovation in Marbella with Polyurea Rayston is workmanship at the difficult line. The open field is the easy part of a resin job. Outlets, edges, penetrations and changes of plane are where thickness goes missing, and where water or wear finds the gap. The same products and the same care belong there, and the cure is allowed to finish before the building goes back into use. That is the difference between a coating that was simply applied and a system that stays in service.
06 · Products
Products on this job
Polyurea Rayston
Named on this project. The data sheet carries the application window and the typical figures.
Kryptanate 100 Flex
Named on this project. The data sheet carries the application window and the typical figures.
07 · FAQ
Frequently asked questions
Where is this project?
Pool Renovation in Marbella with Polyurea Rayston. España – Andalucia
When was the work done?
2019.
Which products were used?
Polyurea Rayston, Kryptanate 100 Flex.
Why are the details done first?
Outlets, upstands and joints are where water gets in. They are closed with the same system as the main area.
Are the figures measured on this job?
No. Thickness, elongation and cure times quoted here are the products’ typical data.
